Product status: End of Life
Overview
Sensor board with .3MP ams / CMOSIS CMV300 Sensor- Production-suitable hardware design
- Serves as a building block for OEM product design projects. Critical Link’s use of hardware building blocks accelerates development schedule and reduces NRE
- Rugged board-to-board connector provides stable connection to a variety of compatible processor boards.
- Board measures 2.5″ (63cm) x 2.5″ (63cm)
Applications
- Embedded Vision
- Machine vision
- Hyperspectral Scanning
- Motion capture
- Bar and 2D code
Documentation
Specifications
Sensor Specification
| Sensor | AMS CMV300 |
| Type | Front-illuminated |
| Active Pixels | 648 (H) x 488 (V) |
| Pixel Size | 7.4um x 7.4um |
| Image Area |
4.80mm (H) x 3.61mm (V)
|
| Frame Rate (Global Shutter) |
480fps
|
| Dark Current @ 25C |
120 e-/s
|
| Dynamic Range |
60dB
|
| Chroma |
Mono or Color
|
| Temperature | -30°C to +70°C |

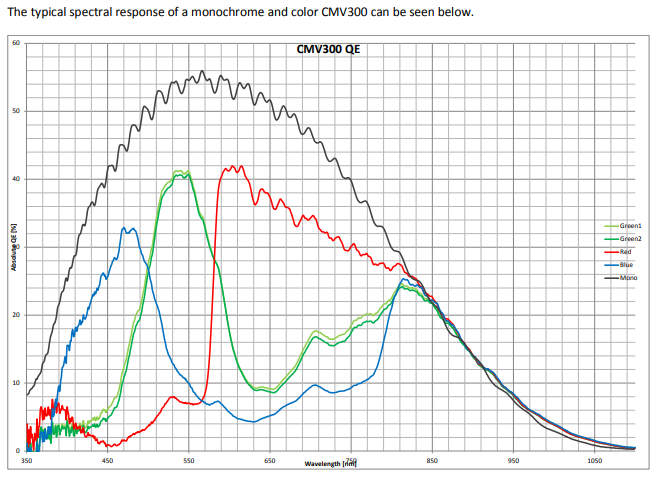

Quantum Efficiency
Related Products
Purchase
The CMV300 sensor board is a production-suitable hardware design for embedded imaging and vision applications. It is intended to serve as a building block for OEM product design projects assisted by Critical Link. Contact us to discuss using this board for your next product design project.
