Overview
The MityCAM-B1910F couples a 2.1MP high-performance, low noise sCMOS imaging sensor from Fairchild Imaging (a division of BAE Systems) with the processing technology in Critical Link’s Altera Cyclone V SoC System on Module.
Applications
- Machine Vision
- Low-light Imaging
- Embedded Instrumentation
- Scientific Imaging
- Surveillance Imaging
- Unmanned & Autonomous Systems
- Metrology Imaging
Documentation
- MityCAM-B1910F/B2521F Overview
- MityCAM-B1910F Data Sheet
- MityCAM-B1910F: Fairchild Imaging CIS1910 Sensor Overview
- Altera Cyclone V SoC Documentation
- Additional documentation is available on the MityCAM wiki page of our engineering support site (account required for some downloads)
Specifications
Sensor Specification
Sensor | CIS-1910F |
Type | Front-illuminated |
Active Pixels | 1920 (H) x 1080 (V) |
Pixel Size | 6.5um x 6.5um |
Image Area (W x H) | 12.5mm x 7.1mm |
Frame Rate Rolling Shutter Global Shutter | 75fps* 37fps* |
Dark Current e-/pixel/sec @ 20C |
<35 e-
|
Peak Quantum Efficiency |
>55%
|
Dynamic Range |
>88dB
|
ADC – Dual 11-bit ADC |
Yes
|
*Data rates up to 100/50fps (rolling/global shutter mode) are possible but not yet qualified.
System Noise
Noise (typ) |
< 1.2 e¯
|
Data Acquisition Modes
Global Shutter |
For longer exposures or synchronizing with an external shutter
|
Rolling Shutter |
For normal high-speed operation
|
On-board Processor
CPU Engine |
Altera Cyclone SoC – Dual core ARM Cortex-A9 and user-programmable FPGA
|
Full Featured SDK |
Supports rapid application development
|
Mount
- Full cameras feature a standard C mount lens, while the board set version allows quick and easy custom integration into your product. Please contact Critical Link for more information.
Environment
Temperature |
0°C to +50°C
|
Humidity |
<80% non-condensing
|
Electrical
Voltage |
12 VDC
|

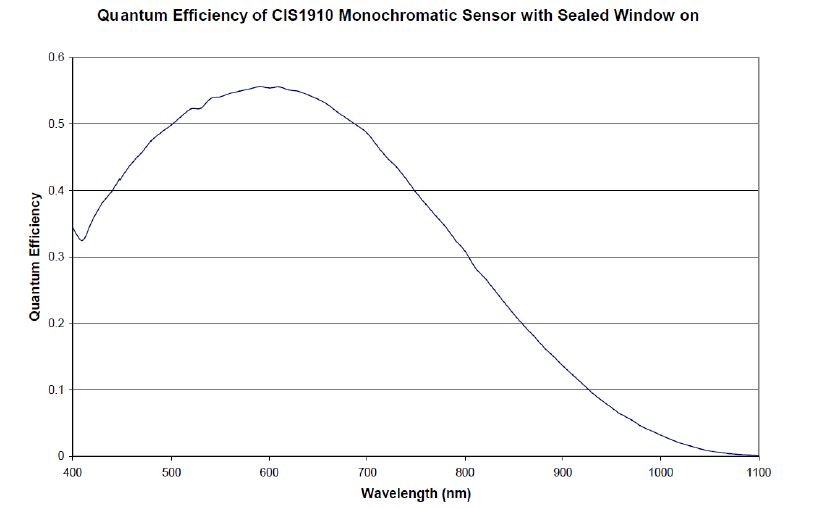

Quantum Efficiency

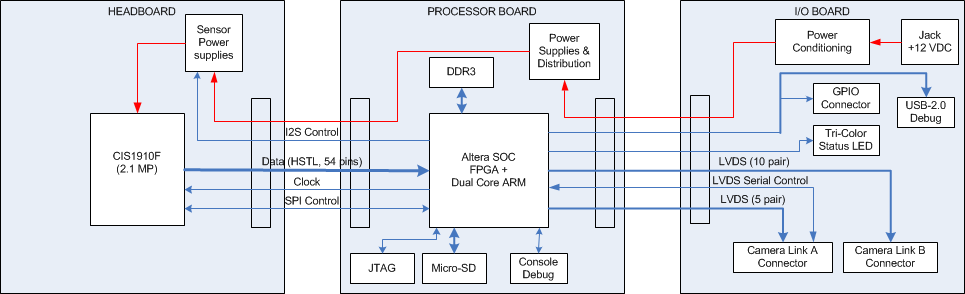

Block Diagram
Interfaces
- USB 3.0 Vision
- Camera Link Base + 10 tap mode
- GigE Vision
- USB 2.0
- Additional interfaces may be available – contact us to inquire about your preferred protocol
Mechanical
Dimensions |
76.2mm x 76.2mm x 66.32mm (3.0″ x 3.0″ x 2.61″)
|
Weight (Camera configuration with Camera Link I/O) |
589g (20.75oz)
|
Software
MityCAM image acquisition can be done through either a CameraLink panel application or with MityViewer, Critical Link’s software solution for optimal throughput and complete functionality.
We recommend visiting the MityCAM wiki page on our engineering support site and registering for an account in advance of receiving your MityCAM. Once your registration is confirmed, you can download the latest version of our MityViewer software from the wiki page, which will be required to start capturing images.
Related Products
Purchase
The following table lists off-the-shelf configuration options for the MityCAM-B1910F cameras. For shipping status, availability, and lead time of these or other configurations, please contact Critical Link.
Model Number | Sensor Package |
Sensor
Window |
Chroma | High Speed Interface | Body | Buy |
B1910FTS-CM-C-S | Scientific | Sealed | Mono | Dual Camera Link | Camera | Buy |
B1910FTS-GM-C-S | Scientific | Sealed | Mono | Gigabit Ethernet | Camera | Buy |
B1910FTT-CM-C-S | Scientific | Temporary | Mono | Dual Camera Link | Camera | Buy |
Accessory Kit
The table below outlines an accessory kit for the MityCAM-B1910F. This kit is required when evaluating the sensor or doing development, and is compatible with the camera body models listed above. It is not required for cameras that are being integrated into a working design.
Part Number | MityCAM Model Compatibility | Kit Contents |
80-000783 |
Compatible with all Camera Body Models:
B1910FTS-CM-C-S
B1910FTS-GM-C-S
B1910FTS-CC-C-S
B1910FTT-CM-C-S
B1910FTT-GM-C-S
|
Nikon AF NIKKOR 50mm f/1.8d Lens
Lens Mount Adapter
Tripod
I/O Cable
USB Cable
Power Supply
Ethernet Cable
|
