Overview
The MityCAM-C8000 couples an 8MP CMV8000 image sensor from CMOSIS with the processing technology in Critical Link’s Altera Cyclone V SoC System on Module.
Applications
- Machine Vision
- Motion Control
- Traffic Monitoring & Management
- Security & Surveillance
- Medical
- Embedded Instrumentation
Documentation
- MityCAM-C8000 Overview
- MityCAM-C8000 Data Sheet
- ams/CMOSIS CMV8000 Product Information Page
- Altera Cyclone V SoC Documentation
- Additional documentation is available on the MityCAM wiki page of our engineering support site (account required for some downloads)
Specifications
Sensor Specification
| Sensor | CMV8000 |
| Type | Front-illuminated |
| Active Pixels | 3360 (H) x 2496 (V) |
| Pixel Size | 5.5um x 5.5um |
| Image Area |
18.48mm (W) x 13.73mm (H)
|
| Frame Rate (Global Shutter) |
95fps, 10-bit output mode
|
| Dark Current @ 25C |
41.2 e-/s
|
| Dynamic Range |
60dB
|
| Extended Dynamic Range |
Up to 90dB (with additional processing)
|
| Chroma |
Mono or Color
|
System Noise
| Read-out Noise (@104fps) |
8.6 e¯
|
Data Acquisition Modes
| Global Shutter |
For longer exposures or synchronizing with an external shutter
|
On-board Processor (MitySOM-5CSX)
| CPU Engine |
Altera Cyclone SoC – Dual core ARM Cortex-A9 and FPGA
|
| Full Featured SDK |
Supports rapid application development
|
Mount
- Full cameras feature a standard C or F mount lens, while the board set version allows quick and easy custom integration into your product. Please contact Critical Link for more information.
Environment
| Temperature |
0°C to +50°C
|
| Humidity |
<80% non-condensing
|
Electrical
| Voltage |
12 VDC
|

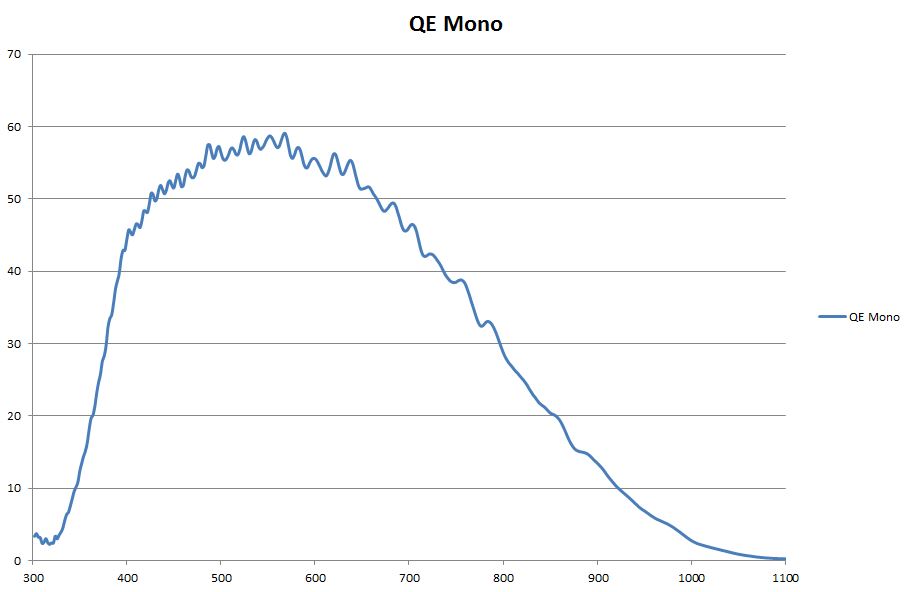

Quantum Efficiency
Block Diagram
Interfaces
- USB 3.0 Vision
- Camera Link Base + 10 tap mode
- GigE Vision
- USB 2.0
- Additional interfaces may be available – contact us to inquire about your preferred protocol
Mechanical
| Dimensions (with Compact Enclosure) |
76.2mm x 76.2mm x 70.55mm (3.0″ x 3.0″ x 2.78″)
|
| Weight (with Compact Enclosure) |
538g (19oz)
|
Software
MityCAM image acquisition can be done through either a CameraLink panel application or with MityViewer, Critical Link’s software solution for optimal throughput and complete functionality.
We recommend visiting the MityCAM wiki page on our engineering support site and registering for an account in advance of receiving your MityCAM. Once your registration is confirmed, you can download the latest version of our MityViewer software from the wiki page, which will be required to start capturing images.
Related Products
Purchase
The following table lists off-the-shelf configuration options for the MityCAM-C8000. For shipping status, availability, and lead time of these or other configurations, please contact Critical Link.
| Camera Model | Enclosure Type | High Speed Interface Option | Color/ Mono | Buy |
| C8000-GC-C-S | Compact Enclosure | GigE Vision | Color | Buy |
| C8000-GM-C-S | Compact Enclosure | GigE Vision | Mono | Buy |
| C8000-CC-C-S | Compact Enclosure | CameraLink | Color | Buy |
Accessory Kit
The table below outlines an accessory kit for the MityCAM-C8000. This kit is required when evaluating the sensor or doing development, and is compatible with the camera body models listed above. It is not required for cameras that are being integrated into a working design.
| Part Number | Kit Contents |
| 80-000784 |
Nikon AF NIKKOR 50mm f/1.8d Lens
Lens Mount Adapter
Tripod
I/O Cable
USB Cable
Power Supply
Ethernet Cable
|
