Overview
The MityCAM-CSG14K features a high-performance CMOS image sensor from ams / CMOSIS. The camera is available with an AIA USB 3.0 Vision Interface (U3V), and a video output interface.
Combined with Critical Link’s software tools designed for our Arria 10 based processor card, the MityCAM-CSG14K makes sensor evaluation and product integration quick and easy. Critical Link also supports a board set version of the camera for customers designing their own mechanicals or managing other integrations; contact us for more details.
Applications
- Machine Vision
- Industrial Inspection
- Flat Panel Display Inspection
- Aerial Mapping and Surveillance
- Video/Broadcast
Documentation
- MityCAM-CSG14K Datasheet
- ams/CMOSIS CSG14K Product Information Page
- Altera Arria 10 SoC Documentation
- Additional documentation is available on the MityCAM wiki page of our engineering support site (account required for some downloads)
Specifications
Sensor Specification
| Sensor | ams/CMOSIS CSG14K |
| Active Pixels | 3856 (H) x 3600 (V) |
| Pixel Size | 3.2um x 3.2um |
| Image Area |
25.4mm (W) x 25.4mm (H)
|
| Frame Rate (Global Shutter) |
110fps, full rate
|
| Dark Current @ 60C |
32e-/s
|
| Dynamic Range |
72dB-Normal
|
| Chroma |
Mono or Color
|
System Noise
| Read-out Noise |
2.3 e¯
|
Data Acquisition Modes
| Global Shutter |
For longer exposures or synchronizing with an external shutter
|
On-board Processor (MitySOM-A10S)
| CPU Engine |
Intel/Altera Arria 10 SoC – Dual core ARM and up to 480KLE FPGA fabric
|
| Full Featured SDK |
Supports rapid application development
|
Mount
- Full cameras feature a standard F mount lens, while the board set version allows quick and easy custom integration into your product. Please contact Critical Link for more information.
Environment
| Temperature |
0°C to +40°C
|
| Humidity |
<80% non-condensing
|
Electrical
| Voltage |
12 VDC
|
Quantum Efficiency

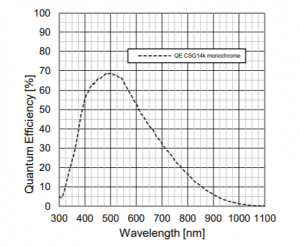

QE curve for the CSG14K monochrome CMOS sensor is shown below:
Block Diagram
Interfaces
- USB 3 / AIA USB3 Vision
- Video output
- Additional interfaces may be available – contact us to inquire about your preferred protocol
Mechanical
- Measurements are in inches
| Dimensions (with Compact Enclosure) |
119.3mm x 119.3mm x 105.9mm (4.7″ x 4.7″ x 4.17″)
|
| Weight (with Compact Enclosure) |
1248g (44oz)
|
Software
MityCAM image acquisition can be done with MityViewer, Critical Link’s software solution for optimal throughput and complete functionality.
We recommend visiting the MityCAM wiki page on our engineering support site and registering for an account in advance of receiving your MityCAM. Once your registration is confirmed, you can download the latest version of our MityViewer software from the wiki page, which will be required to start capturing images.
Related Products
Purchase
The following table lists off-the-shelf configuration options for the MityCAM-CSG14K. For shipping status, availability, and lead time of these or other configurations, please contact Critical Link.
| Camera Model | Enclosure Type | Interface Option | Color/ Mono | Buy |
| CSG14K-UM-C-S | Body | USB 3 + Video output | Mono | Buy |
| CSG14K-UC-C-S | Body | USB 3 + Video output | Color | Buy |
| CSG14K-UC-X-S | Board Set | USB 3 + Video output | Color | Buy |
Accessory Kit
The table below outlines an accessory kit for the MityCAM-CSG14K. This kit is required when evaluating the sensor or doing development, and is compatible with the camera body models listed above. It is not required for cameras that are being integrated into a working design.
| Part Number | Kit Contents |
| 80-001150 |
Nikon 50mm f/1.8 Lens
Tripod
I/O Cable
USB 3 Cable
Video Output Cable
Power Supply
|
